Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Is there anything else we can help you with?"

When the appliance detects that the non-washable carbon filters need replacing the display on the appliance will show a full bar.

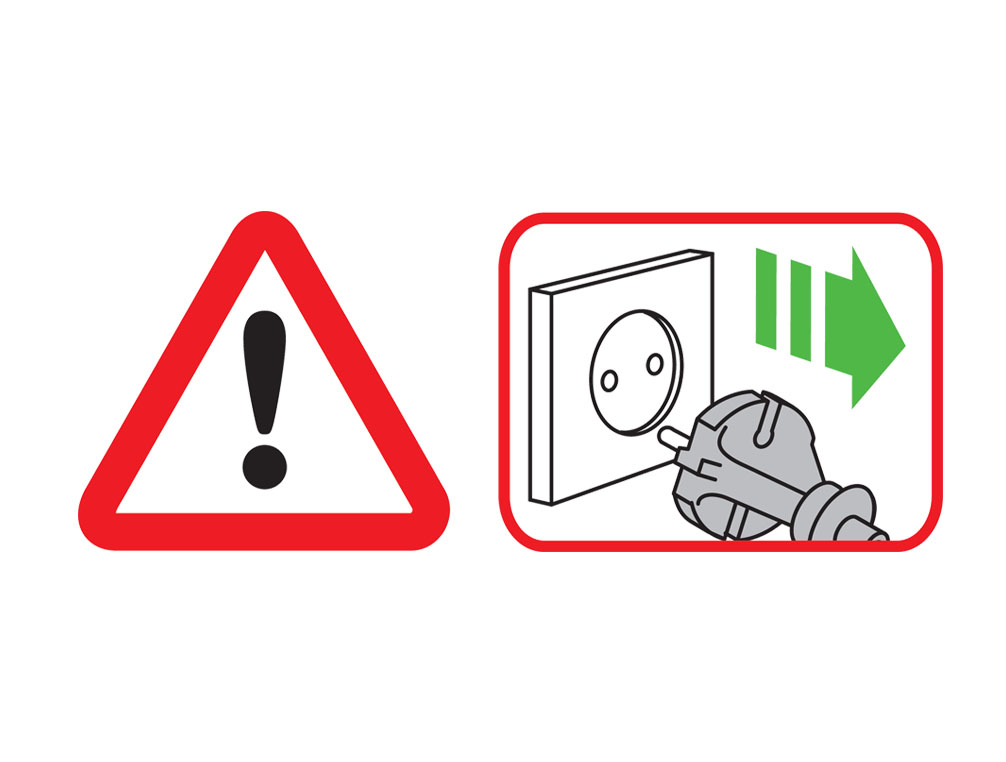

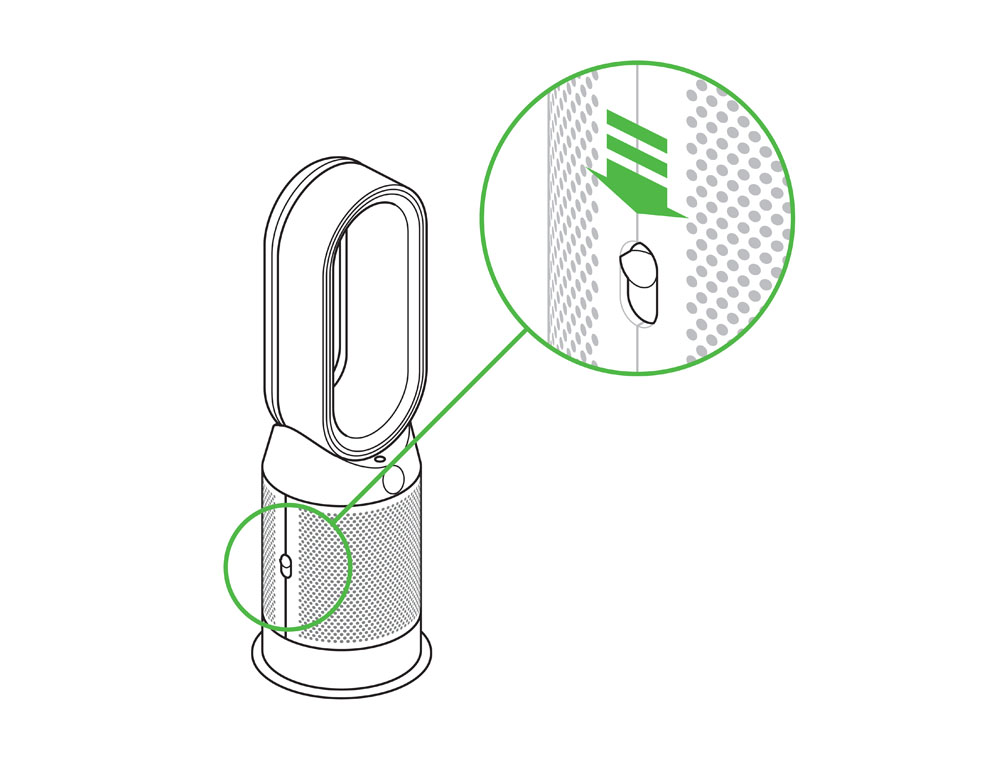

Unplug the appliance from the mains electricity supply. Slide the buttons down on either side of the shrouds. The shrouds will release with the glass HEPA filters attached.

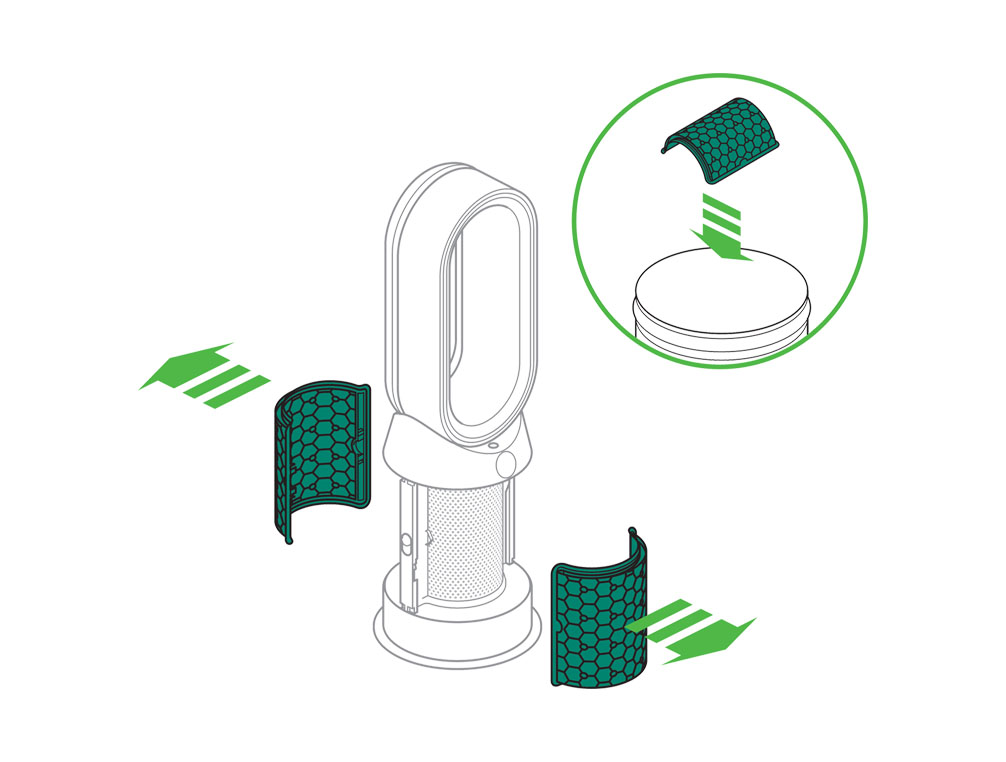

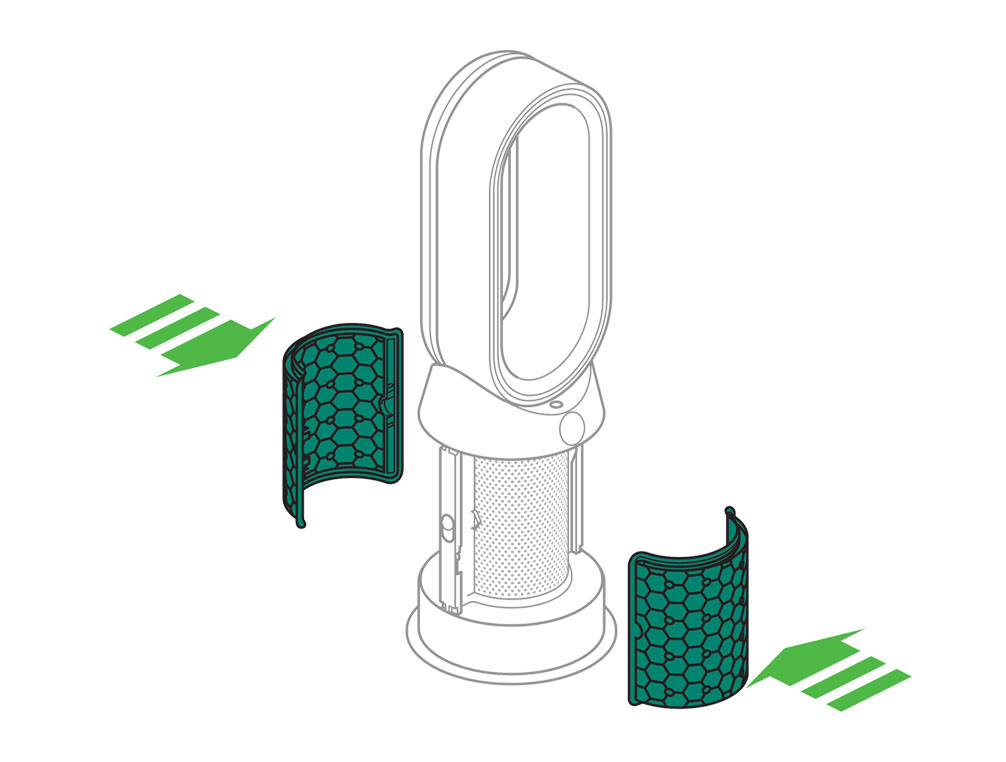

To remove the carbon filters: press the tabs on both sides of the filters.

Dispose of the carbon filters in the bin. Dispose of used filter units in accordance with local regulations.

Push the new carbon filters onto the base until secure.

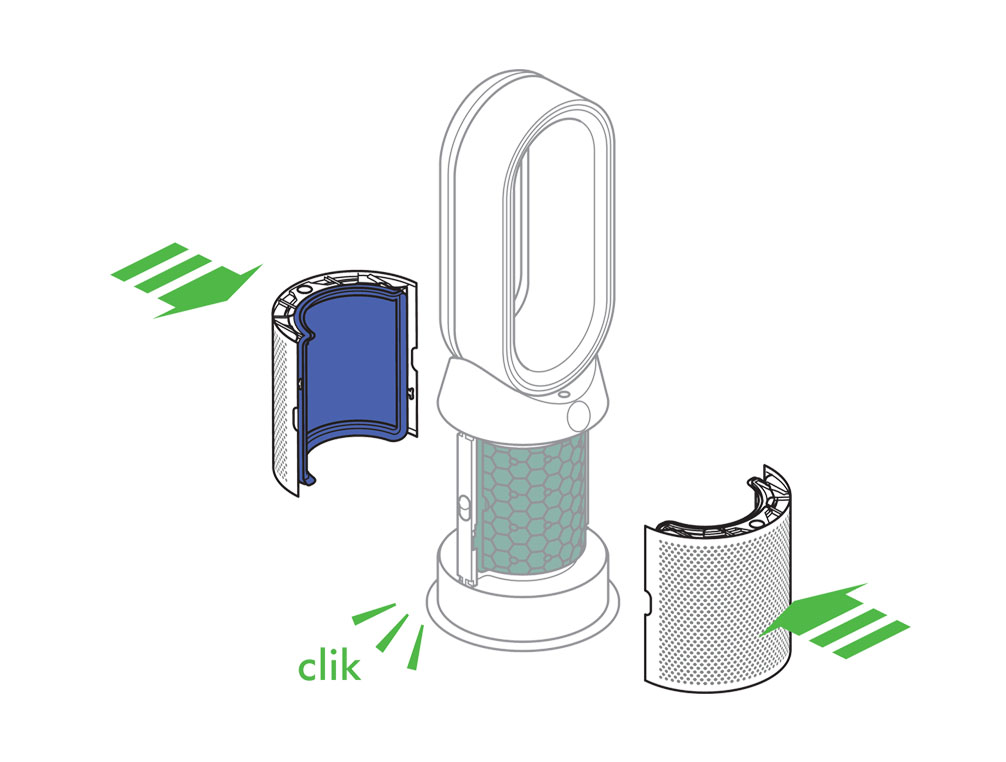

Push the shrouds until they click back into position in the base.

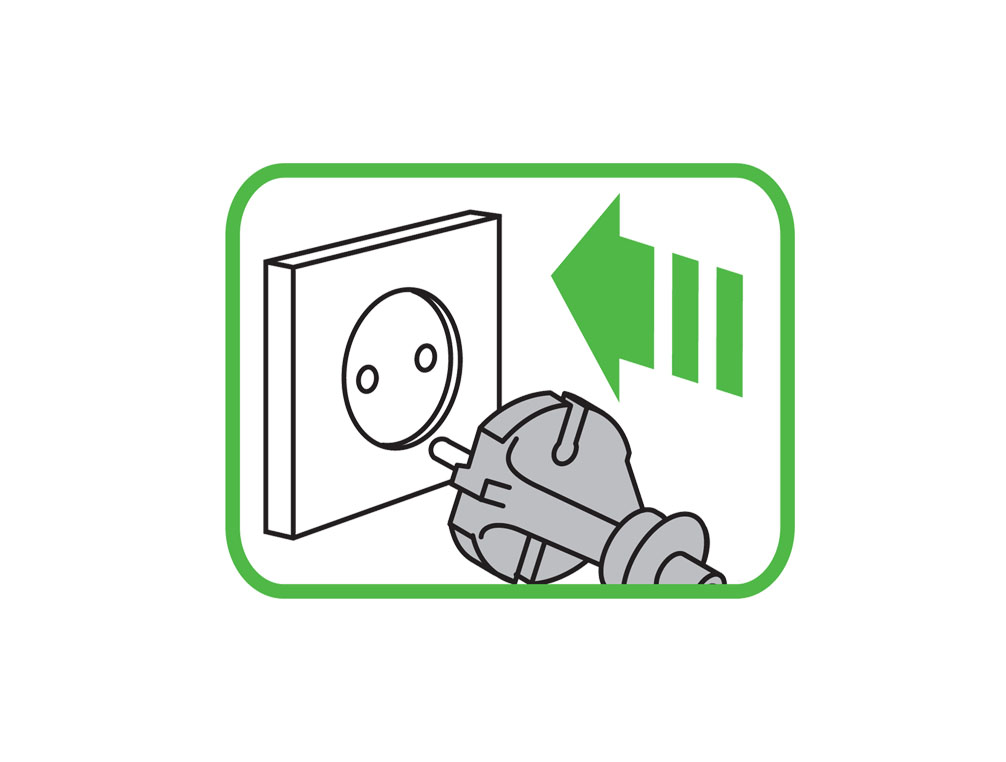

Plug the appliance in to the mains electricity supply and switch on.

Press and hold the Oscillation button on the remote control. The display on the appliance will countdown from five, finishing with the default screen. The carbon filter level will be reset and the appliance is ready to use.

Continuous monitoring

The continuous monitoring option is used for air quality, temperature and humidity data to be relayed to the machine and app at all times, even when you have turned the purifier off. The sensors have small fans that maintain airflow for continuous monitoring, but this should not cause any audible noise interference.

Continuous monitoring can now also be turned on/off by pressing the 'Auto' button on the remote control for five seconds.

Retest the machine.

Check and clean loop amplifier

The following areas should be checked and cleaned to maintain the machine's performance.

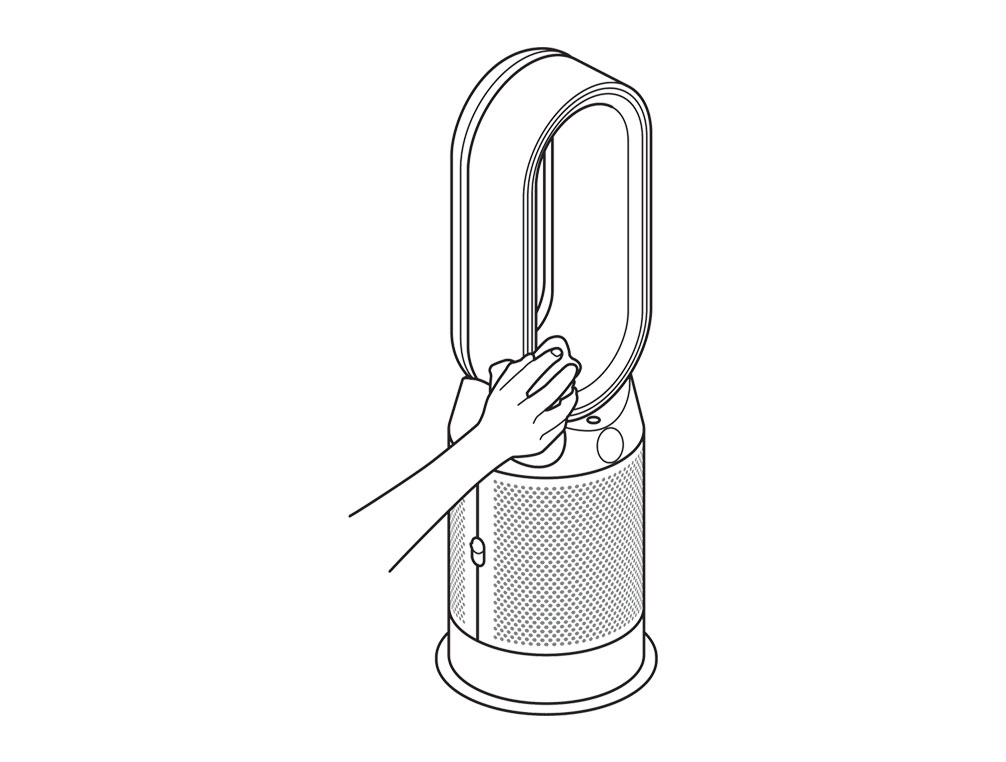

Clean the loop amplifier with a dry or damp cloth.

Ensure that the narrow opening is free of obstructions.

Check and clean Main body

Clean the shroud of the Main body with a dry cloth.

Use a soft brush to clear any blockages from the holes.

Ensure the machine is turned on.

Ensure correct button on remote is being pressed.

Point the remote directly at the front of the machine while pressing the button.

Remote control

Point the remote directly at the front of the machine while pressing the button.

Test cooling mode.

Test the heating control.

Test the oscillation.

Test the sleep timer.

Change the battery

Unscrew the remote control's battery compartment.

Loosen the base and pull it away from the remote. Replace the battery with type CR 2032.

Heating elements

The heating elements turn on one at a time and so this is to be expected when the machine first turns on.

Run the purifier for 1 minute at the highest temperature setting.

NB: The heating elements will only work with the airflow facing forwards.

Target temperature

The heater will not operate unless the target temperature is above the room temperature. The temperature set on the machine is the target temperature of the room, not the temperature of the fan; the temperature from the fan when in heating mode will not change.

Press the red temperature control button until the digital display on the Main body shows 37°C.

Intermittent power

Dyson fan heaters and hot and cool purifiers have a positive safety feature where the machine deliberately switches off after 9 hours of continuous heating. This would also occur if the machine is set to auto and providing heat constantly for 9 hours. NB: This feature cannot be switched off.

Check with the remote

Press the oscillation button on the remote.

If the using the buttons on the remote doesn't work, try changing the batteries.

Check the electrics

Check that the household electrics are on.

Check the plug and power cord for signs of damage.

Try the machine in a different plug socket.

Ensure the cable is firmly plugged into the back of the machine.

NB: There will be a 3 second delay when switching on after plugging in for the first time or when changing plug sockets.

Main power button

Press the ON/OFF button on the Main body of the machine.

Point the remote directly at the front of the machine while pressing the button.

Check and clean machine

The following areas should be checked and cleaned to maintain the machine's performance.

Clean loop amplifier with a dry or damp cloth.

Clean the Main body with a dry cloth.

Clean inlet grille with a dry cloth or soft brush.

Your filter may need replacing.

Check filter life within the app, on the display screen, or for excessive build up of dust within the inlet.

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has this resolved the problem?"

When the appliance detects that the non-washable carbon filters need replacing the display on the appliance will show a full bar.

Unplug the appliance from the mains electricity supply. Slide the buttons down on either side of the shrouds. The shrouds will release with the glass HEPA filters attached.

To remove the carbon filters: press the tabs on both sides of the filters.

Dispose of the carbon filters in the bin. Dispose of used filter units in accordance with local regulations.

Push the new carbon filters onto the base until secure.

Push the shrouds until they click back into position in the base.

Plug the appliance in to the mains electricity supply and switch on.

Press and hold the Oscillation button on the remote control. The display on the appliance will countdown from five, finishing with the default screen. The carbon filter level will be reset and the appliance is ready to use.

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has this resolved the problem?"

When the appliance detects that the nonwashable glass HEPA filters need replacing the display on the appliance will show a full bar.

Unplug the appliance from the mains electricity supply. Slide the buttons down on either side of the shrouds.

The shrouds will release with the glass HEPA filters attached.

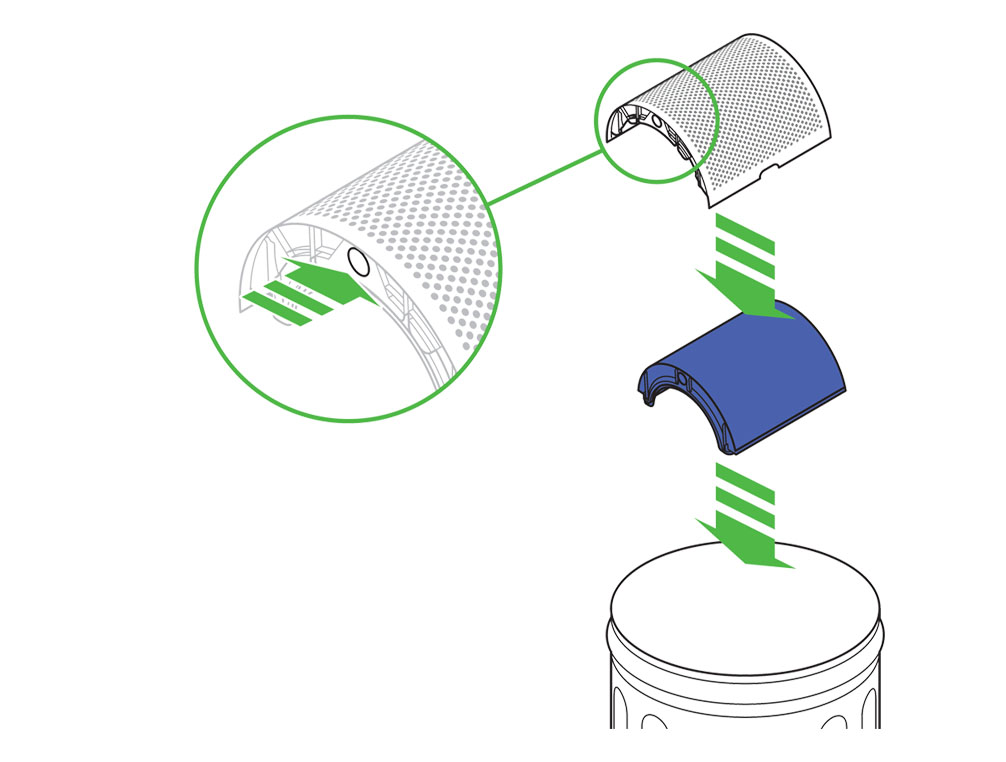

Empty the glass HEPA filters directly into the bin by pushing in both the purple tabs on the shrouds. Dispose of used filter units in accordance with local regulations.

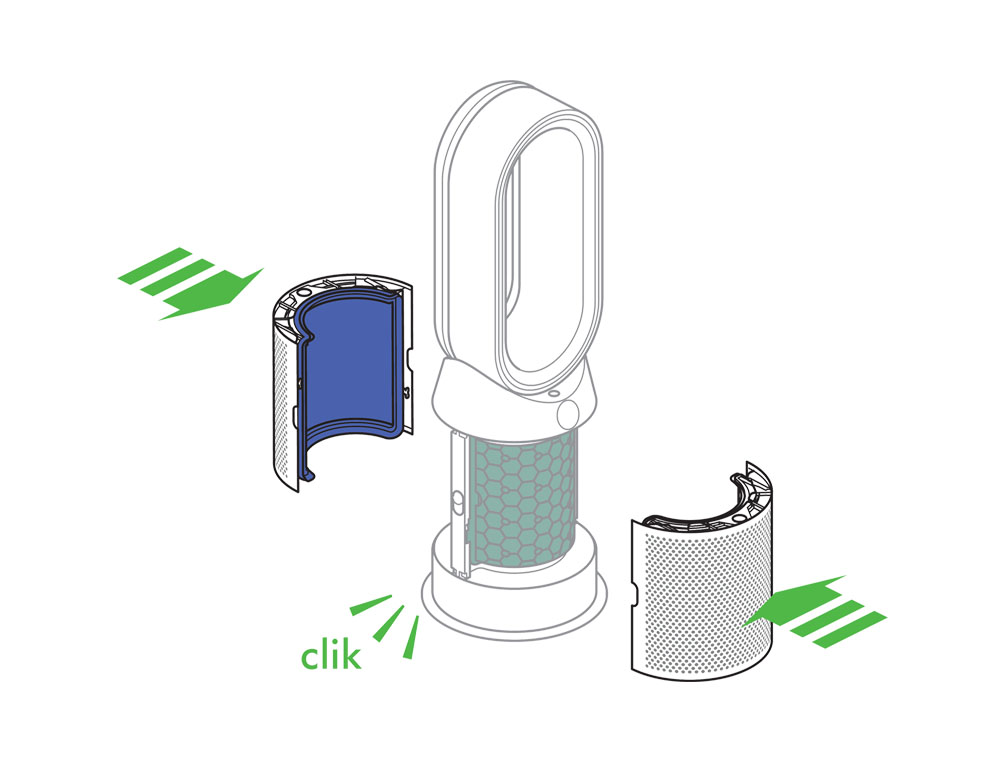

Push the new glass HEPA filters into the shrouds until secure. Push the shrouds until they click back into position in the base.

Press and hold the Night mode button on the remote control. The display on the appliance will countdown from five, finishing with the default screen. The glass HEPA filter level will be reset and the appliance is ready to use.

Fault

Reset the machine.

Unplug the machine and leave it for 10 seconds.

Plug the machine back in and retest.

Restart the machine

Switch off and unplug the machine.

Ensure all outside doors and windows are closed.

Vacuum the two sensor slots to the left of the LCD screen with a Dyson brush attachment.

Plug in and test the machine.

Switch off and unplug the machine.

Move the machine to another room.

Plug in and test the machine.

The interface is designed to stay on the screen you select. Please ensure the remote is not being accidentally pressed.

There may be times when the display is showing green but the fan speed is still high.

This is due to the machine always trying to maintain high air quality. For example, in a room with leaky windows, the machine has to work harder via a higher Fan speed to maintain a high air quality.

If you want the fan to be quieter, you can choose to change the airflow direction to face backwards, or turn the machine to manual mode and lower the airspeed.

Night mode is not working

When in Night mode, your machine will automatically sense the ambient light level and adjust the resting screen brightness accordingly.

If the room is bright, (for example, the lights are on), the screen's display will be set to minimum brightness. If the room is dark (lights off) the screen is turned off.

In both scenarios, when the machine is interacted with, the screen brightness will uplift.

The first time your purifier is turned on, the gas sensors will perform a self-calibration which takes one hour after which time they will work normally.

If the power cuts out within the hour, the initialisation period will continue from where it left off.

If your machine is new out the box and has not been turned on for over an hour, please allow a full hour to complete, with your purifier plugged into a secure power source.

Once the full hour has elapsed, turn the machine off and then on again, either with the main power button on the machine, or the remote control.

If your purifier has been plugged into a stable power source for over one hour, and the VOC and/or NO2 screens still do not show, please unplug your machine from the wall, leave for one minute, plug back in, and then turn on using either the main power button, or the button on the remote.

Check remote control

Ensure correct button on remote is being pressed.

Check other remote functions

Point the remote directly at the front of the machine while pressing the button.

Test cooling mode.

Test the heating control.

Test the airflow.

Test the sleep timer.

Check machine base

Ensure all the feet are attached to the base of the machine.

Place the purifier on a flat, non-slip surface.

Check remote control

Ensure correct button on remote is being pressed.

Use both hands to lift the appliance out of the box, taking care to hold by the base of the appliance only. Do not lift out by the amplifier loop.

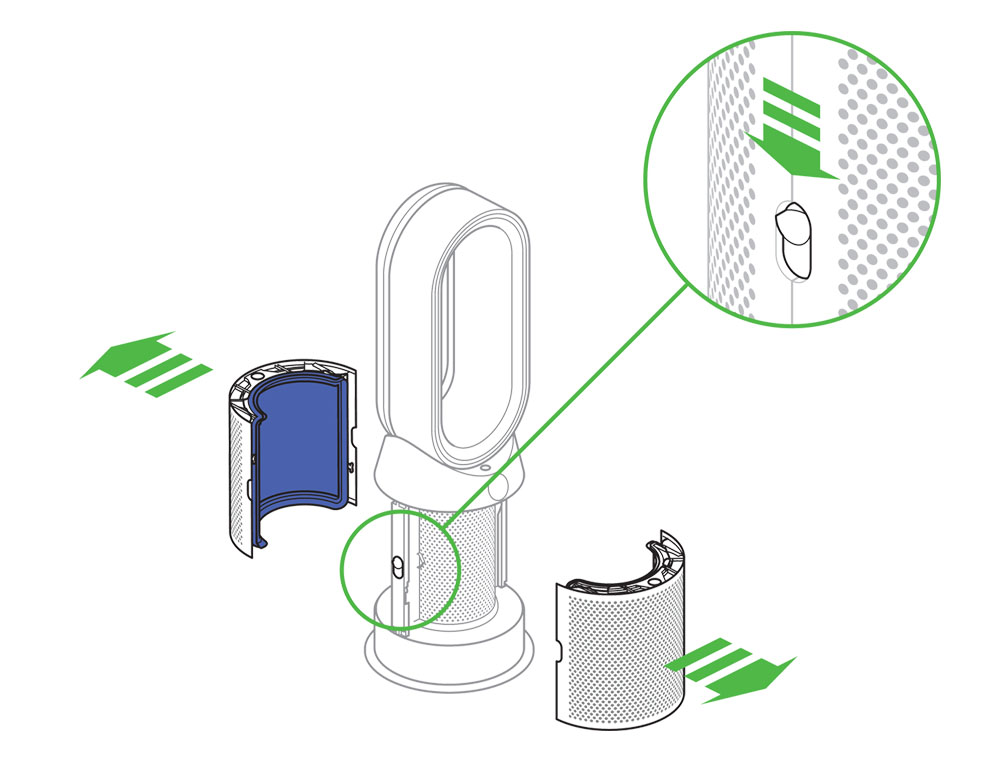

Slide the buttons down on either side of the shrouds. The shrouds will release with the glass HEPA filters attached.

Take the carbon filters out of the box and remove the protective packaging.

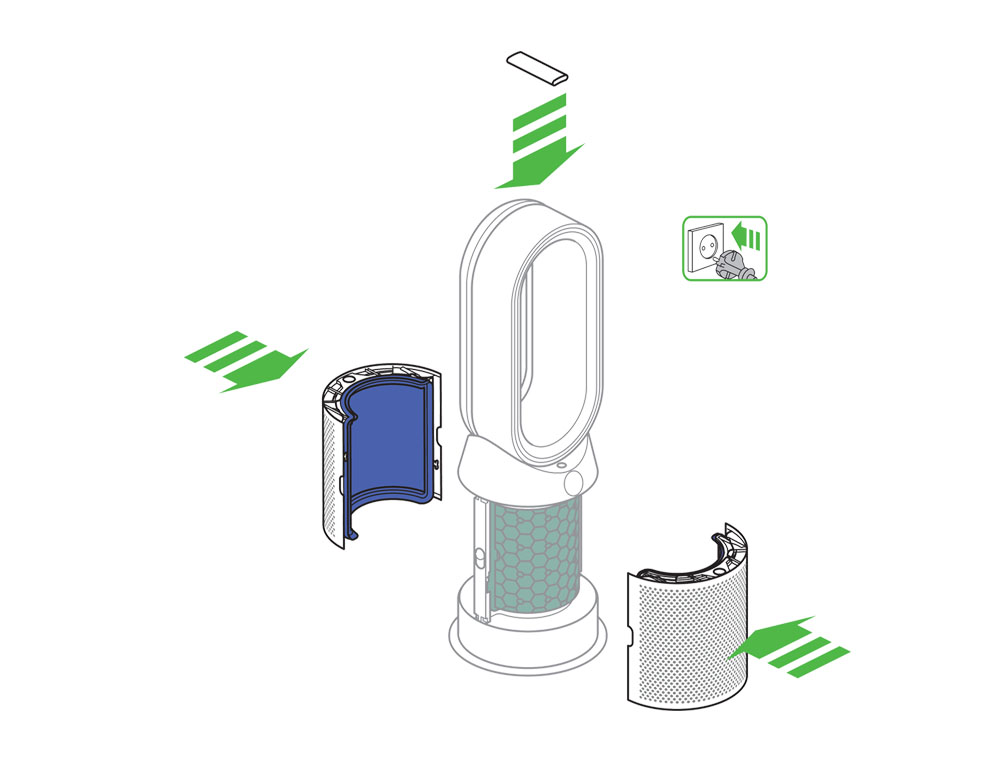

Attach both carbon filters to the appliance.

Position the shrouds onto the base and push gently until they click securely into place. Place the remote control on the top of the appliance with the buttons facing down. Plug in and switch ON.

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Is there anything else we can help you with?"

When the appliance detects that the nonwashable glass HEPA filters need replacing the display on the appliance will show a full bar.

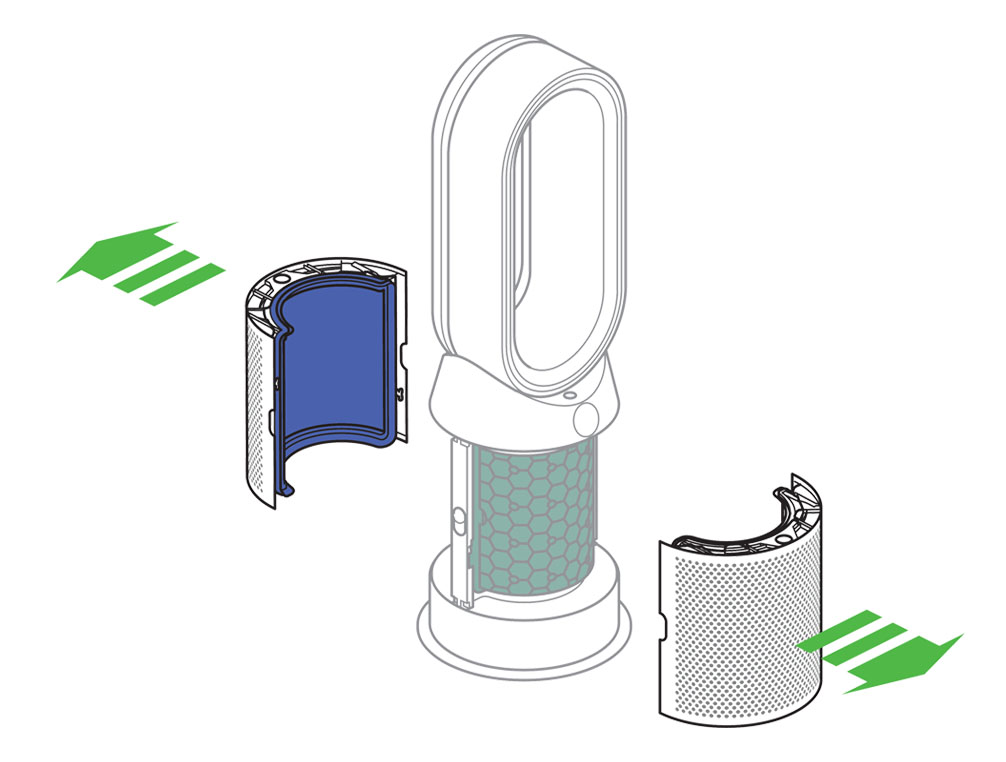

Unplug the appliance from the mains electricity supply. Slide the buttons down on either side of the shrouds.

The shrouds will release with the glass HEPA filters attached.

Empty the glass HEPA filters directly into the bin by pushing in both the purple tabs on the shrouds. Dispose of used filter units in accordance with local regulations.

Push the new glass HEPA filters into the shrouds until secure. Push the shrouds until they click back into position in the base.

Press and hold the Night mode button on the remote control. The display on the appliance will countdown from five, finishing with the default screen. The glass HEPA filter level will be reset and the appliance is ready to use.

Information menu

Scroll through the options to monitor the performance of your appliance.

The menu will also allow you to access information about the pollutants in the air and the temperature and humidity levels.

When a particular type of pollutant causes air quality to decrease, the symbol for that pollutant will show in the display.

Indoor air quality - 12 seconds

Monitor the current air quality with a graph showing the last 12 seconds of data.

Indoor air quality - 24 hours

Monitor the air quality with a graph showing the last 24 hours of data.

Particulate matter (PM2.5)

Microscopic particles up to 2.5 microns in size, suspended in the air we breathe. These include smoke, bacteria and allergens.

Particulate matter (PM10)

Larger microscopic particles up to 10 microns in size, suspended in the air we breathe. These include dust, mould and pollen.

Nitrogen dioxide and other oxidising gases

These potentially harmful gases are released into the air by combustion, for example the burning gas when cooking and in vehicle exhaust emissions.

Volatile organic compounds

VOC’s are typically odours that may be potentially harmful. These can be found in cleaning products, paints and new furnishings.

Indoor temperature

Monitor the ambient temperature to help maintain a comfortable environment.

Indoor humidity

The amount of water vapour in the air, shown as a percentage of the maximum possible humidity at the current temperature.

Filters

The amount of pollution captured by the filters is shown in the display. When the filter is full, the display will flash to remind you which filter needs changing.

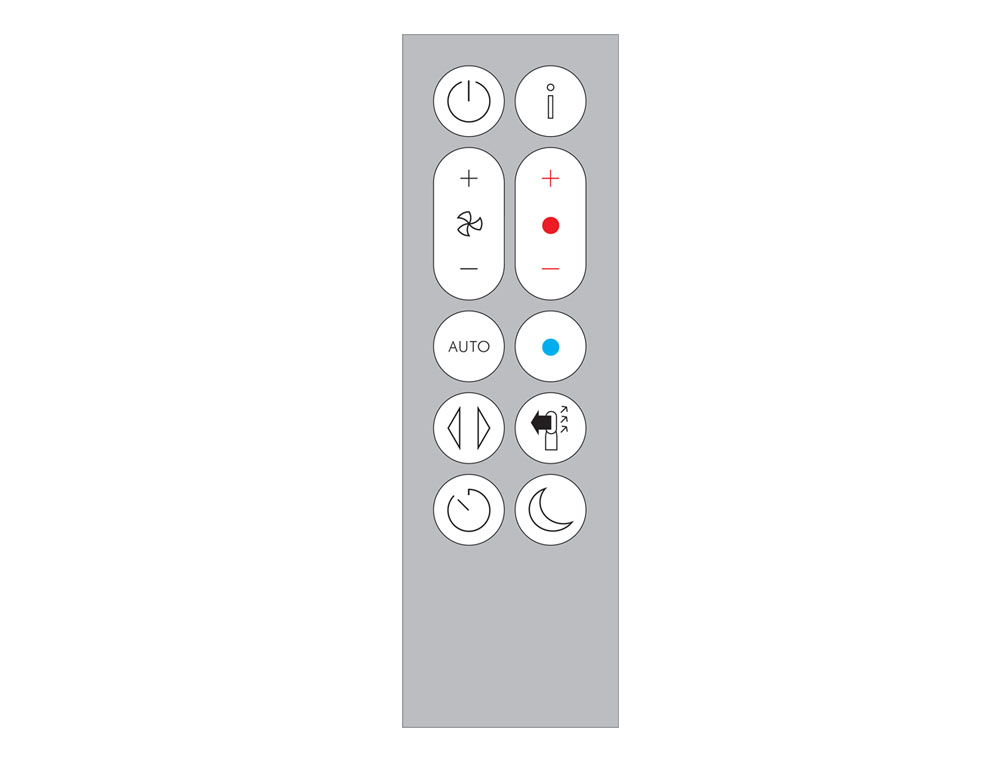

Using the remote control

To operate, point the remote control toward the front of the base.

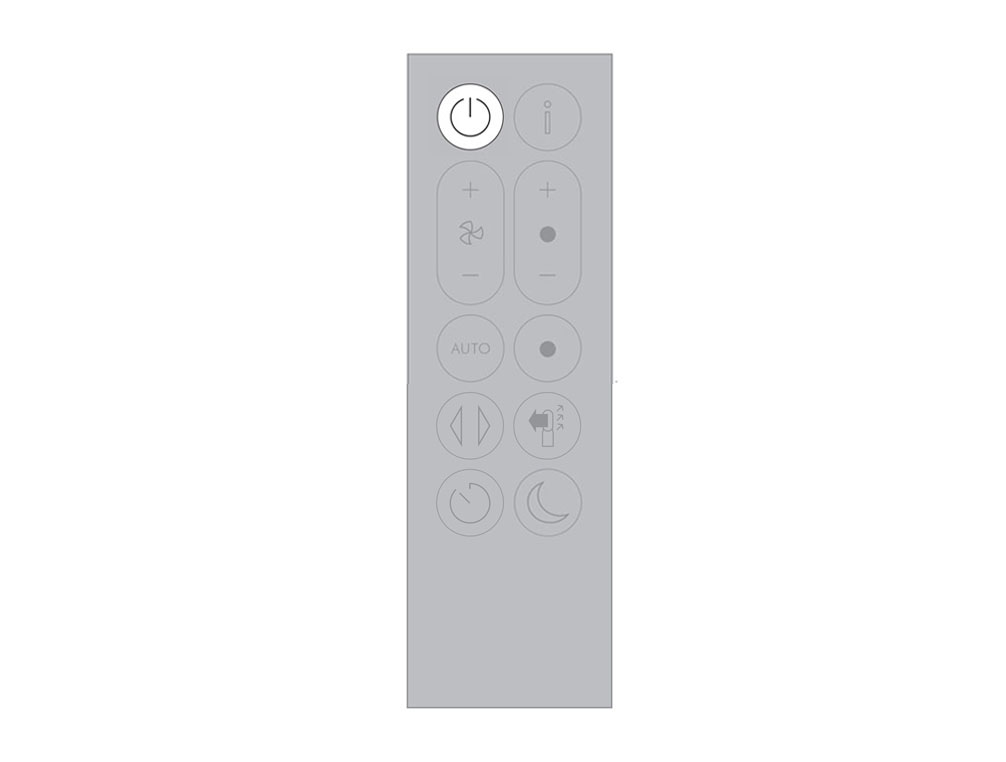

On/Off

Press the power ON/OFF button on the appliance or remote control to stop the purifier. The appliance will continue to monitor the air quality.

Airflow speed

Press the Airflow speed button to increase and decrease the airflow speed.

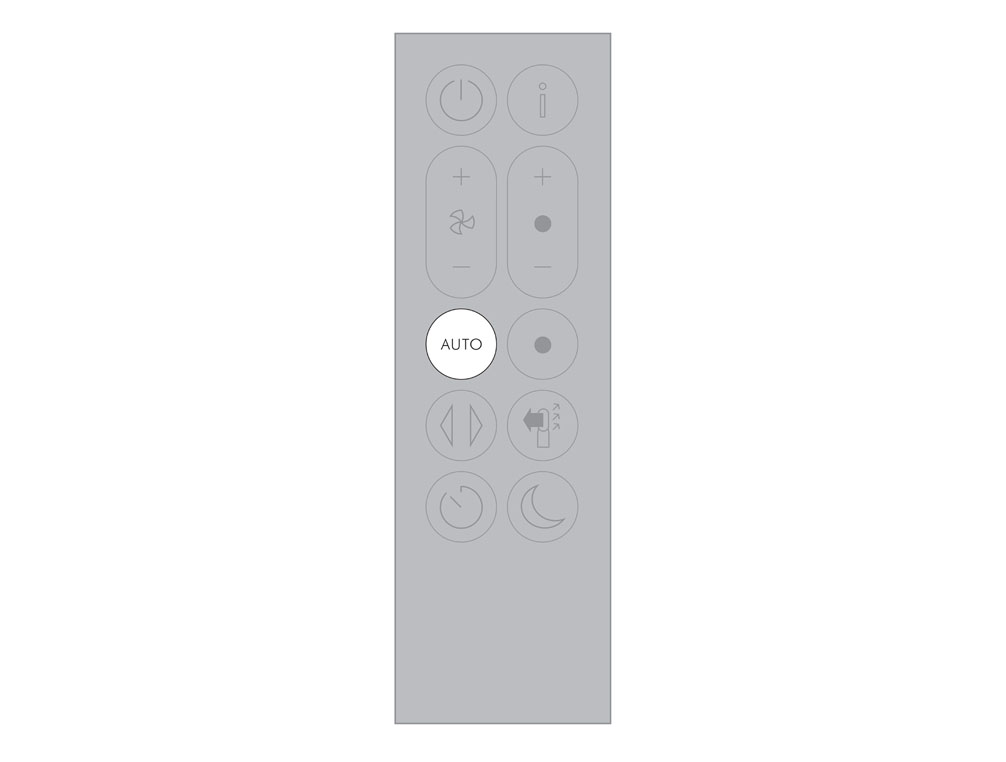

Auto mode

Set your appliance to Auto mode and the on-board sensors will intelligently adjust the settings of the appliance according to the air quality.

Air quality: your appliance will pause when the target air quality has been reached, switching on again when the air quality levels drop.

Airflow speed: The airflow speed will increase until the target air quality and temperature have been reached.

Night mode: Your appliance will only run with Airflow speeds from 1 to 4.

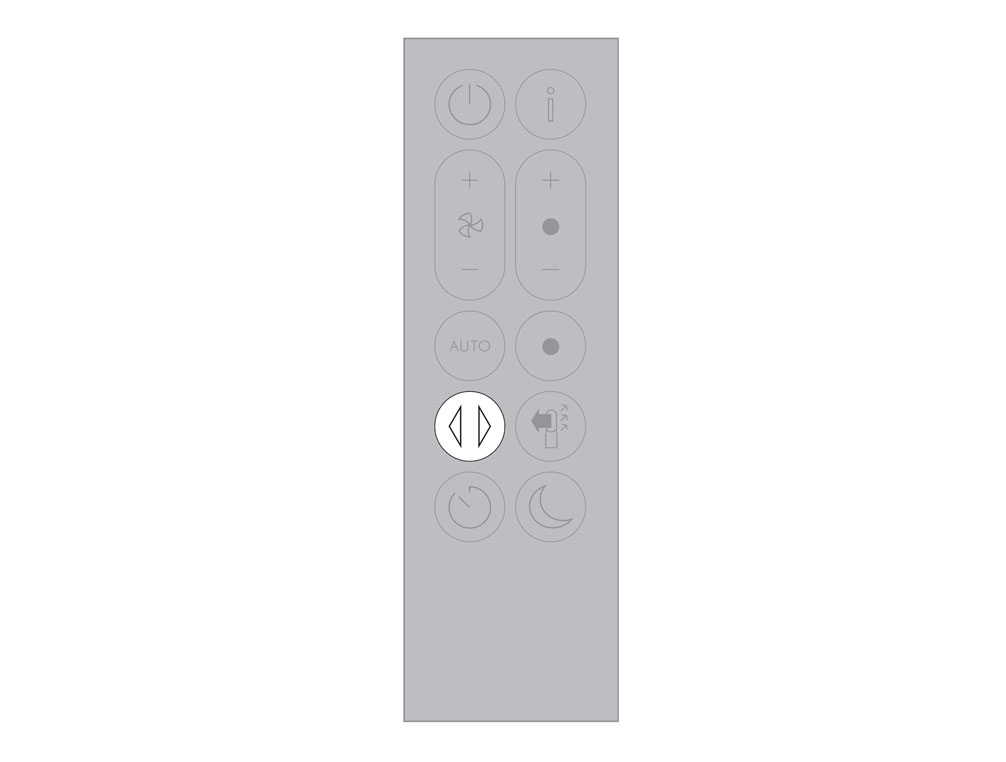

Oscillation On/Off

Press the Oscillation button to scroll through the options from 0° to 350°.

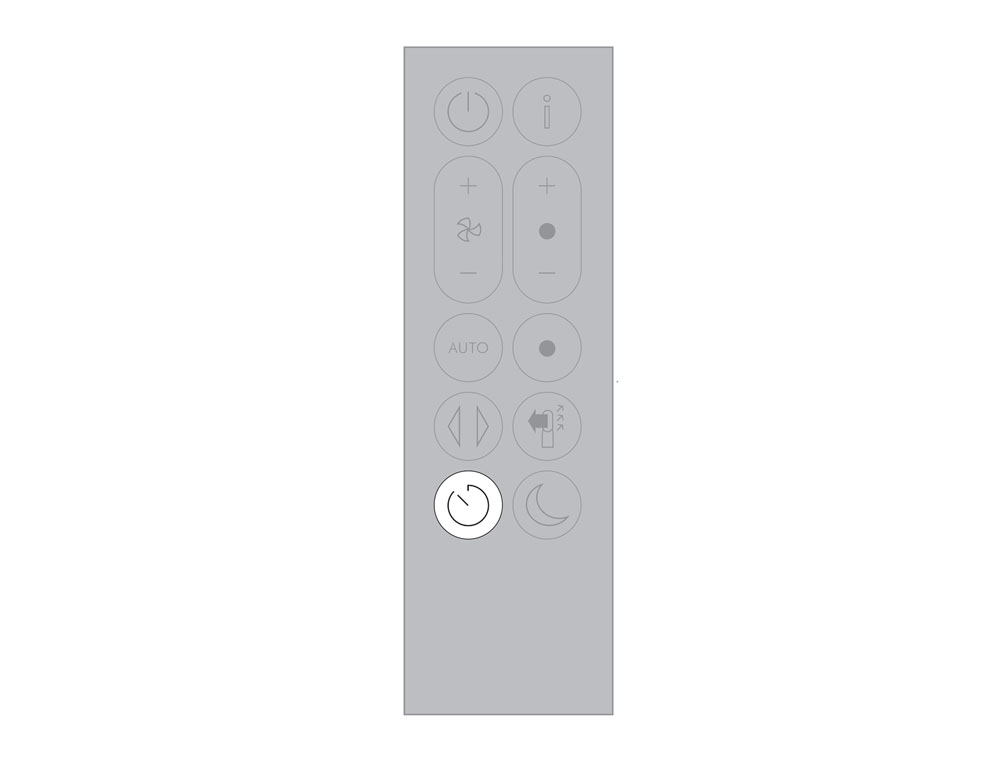

Sleep timer

Your appliance will turn off automatically after the selected amount of time.

To set the time: Press the button to scroll through the time options.

Once activated press the Sleep timer button once to see the time selected.

To cancel the Sleep timer: Press the Sleep timer button twice.

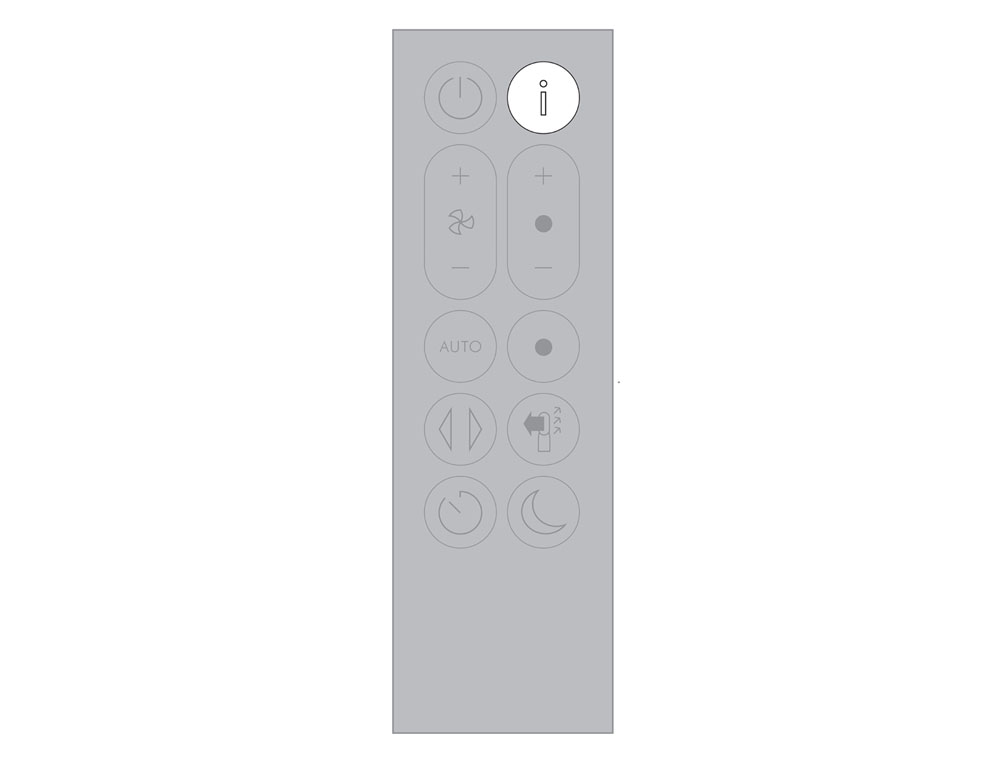

Information menu

Scroll through the options to monitor the performance of your appliance.

The menu will also allow you to access information about the pollutants in the air and the temperature and humidity levels.

When a particular type of pollutant causes air quality to decrease, the symbol for that pollutant will show in the display.

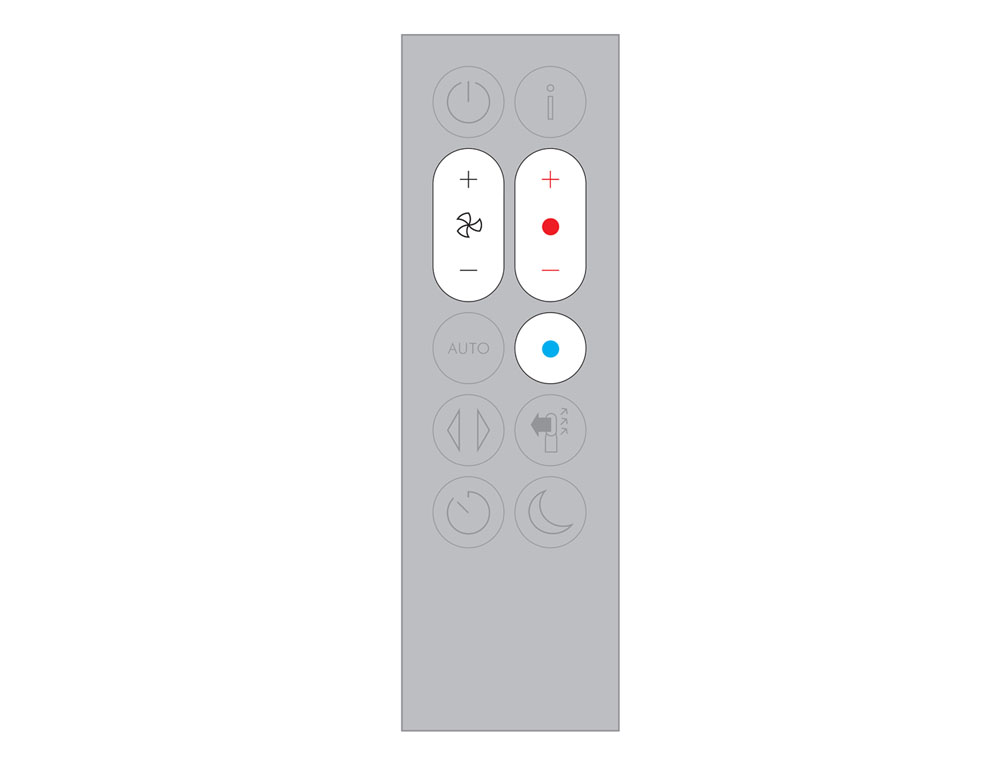

Heating control

Use the heating control to set the desired room temperature. The appliance will then automatically manage the temperature until the target has been reached.

Cooling mode

Press the blue Cooling mode button to enter Cooling mode.

The Power button light will change from red to blue to indicate that you have entered Cooling mode.

To adjust the airflow speed use the airflow control button or use the auto purification mode for automatic control.

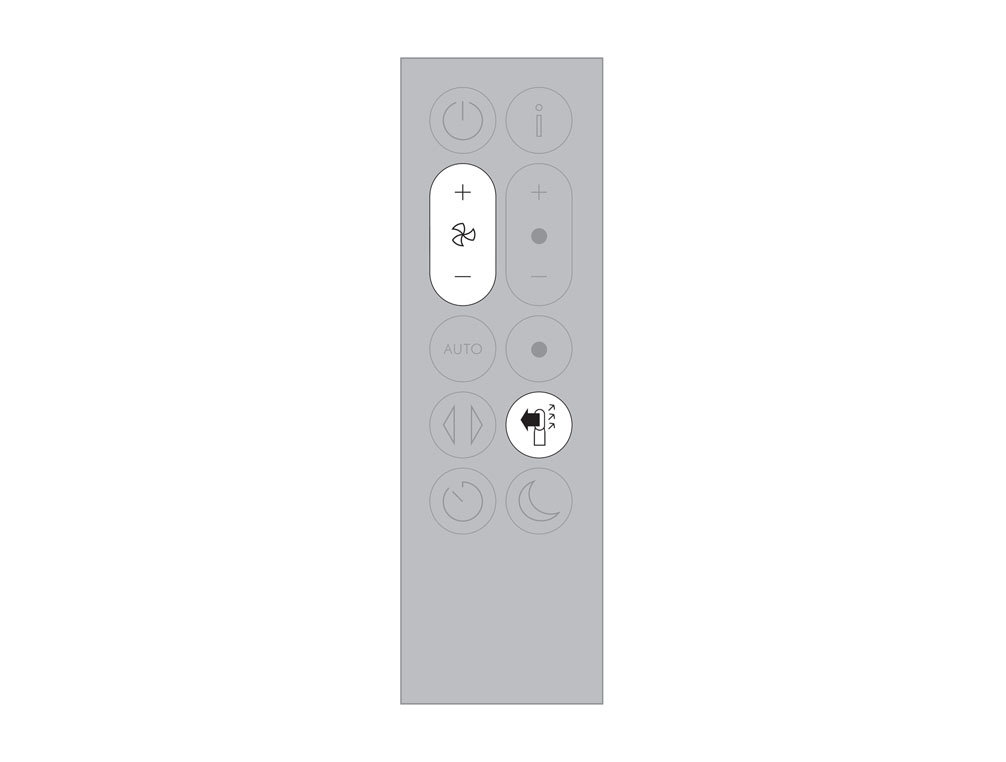

Airflow direction

Press the Airflow direction button to change the direction of airflow from front to back.

Your appliance will continue to purify in both settings.

Heating mode will only function when the airflow direction is set to the front. If airflow direction is changed to the back, your purifier will change to cooling mode.

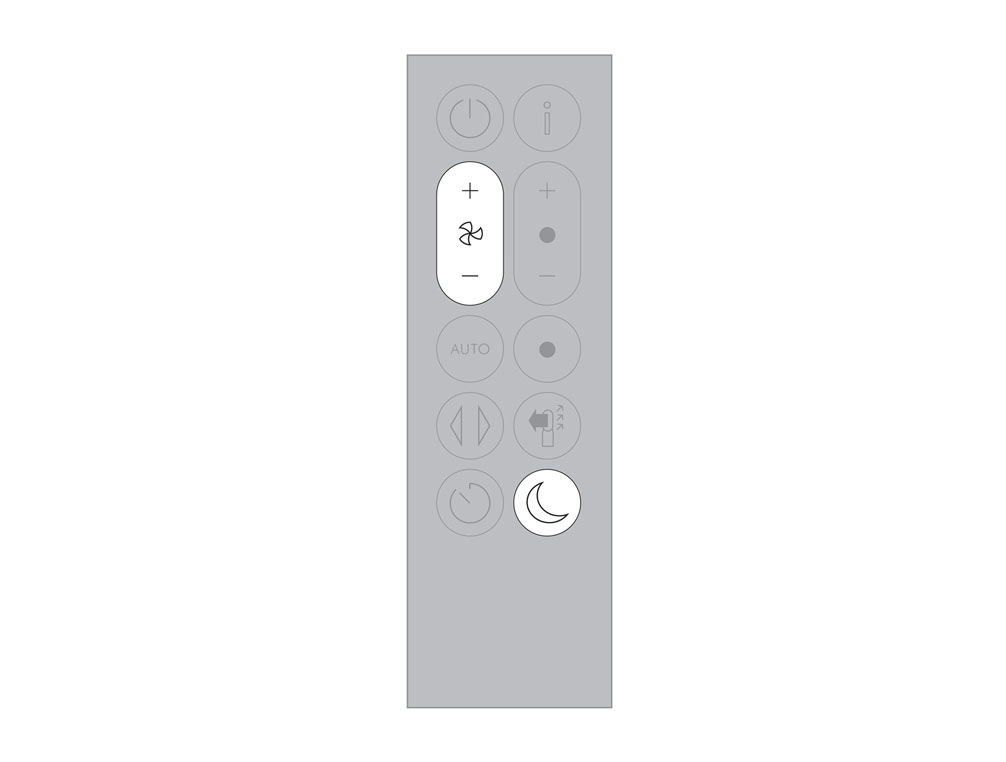

Night mode

The Night mode will dim the display and run quietly, making it ideal for use while sleeping.

If Auto mode has been set, Night mode will reduce airflow speeds to range from 1 to 4.

You can manually change the airflow from 1-10.

Cleaning the machine

To ensure that your appliance works efficiently, it is important to clean and check for blockages regularly.

Unplug your appliance from the mains electricity supply before cleaning.

Do not use detergents or polishes to clean the appliance.

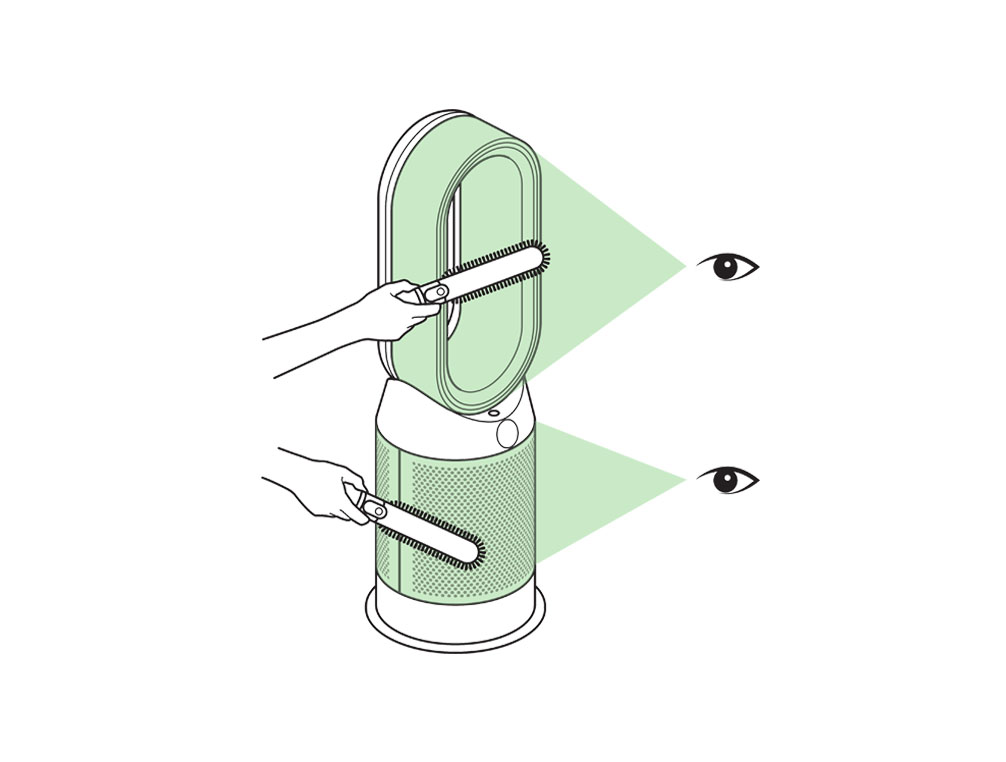

Look for blockages in the air inlet holes on the filter and the small aperture inside the loop amplifier.

Use a soft brush to remove dust and debris.

Dust may accumulate on the surface of the machine. Wipe dust from the loop amplifier, filter unit and other parts with a dry or damp cloth.

Replacing the battery

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Is there anything else we can help you with?"

Unscrew the remote control's battery compartment.

Loosen the base and pull it away from the remote.

Replace the battery with type CR 2032.
