Let's get your machine working

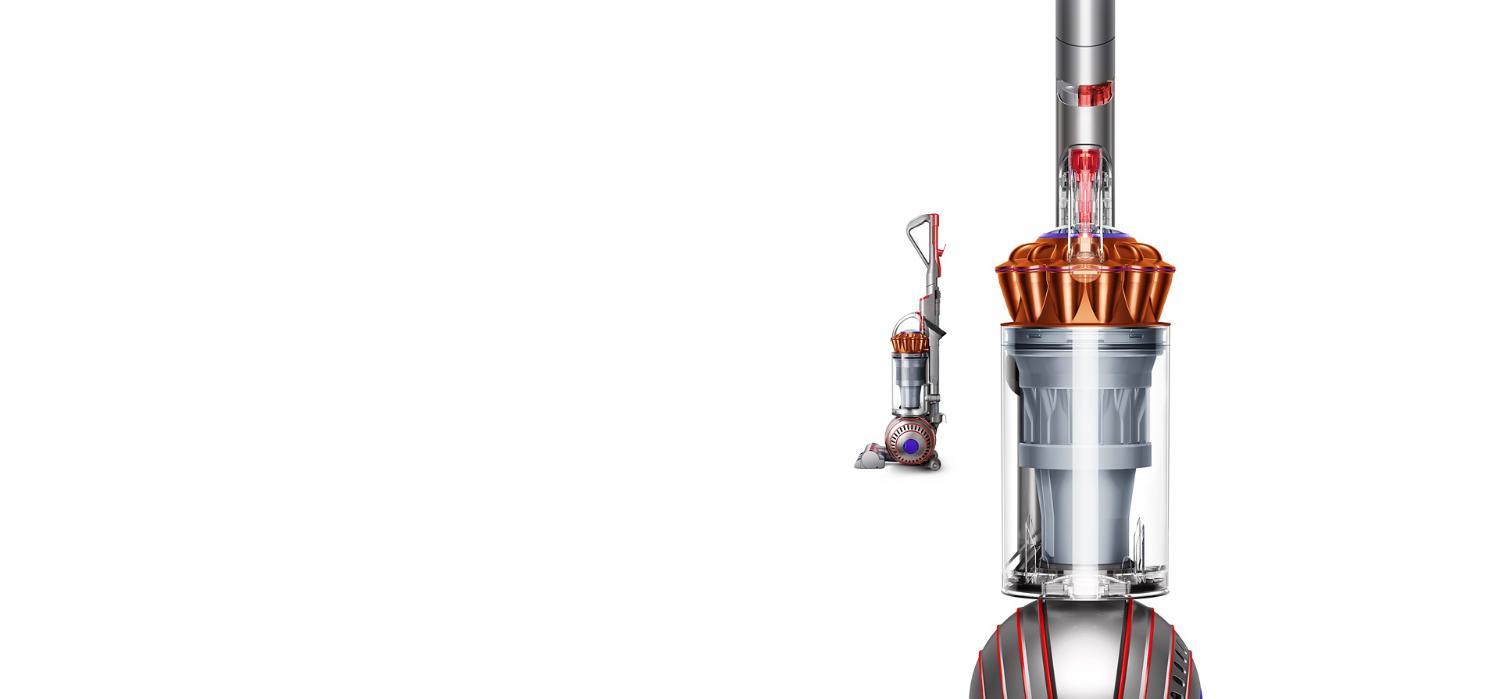

Ball Animal 3 Extra
See all steps

Please select the appropriate option

Clean the bin and cyclone

Press the button at the top of the cyclone handle and remove the bin from the machine.

Press the button again to open the bin base.

Press the button near the rectangular inlet to separate the clear bin from the cyclone.

The clear bin can be wiped with a damp cloth.

Do not use any detergent or polish on any part of the machine.

Check the bin and cyclone for blockages and remove as necessary.

Clear any hair or fibres from the cyclone shroud

Do not use any water on the cyclone.

Ensure the bin is completely dry before reassembling the machine.

Is there anything else we can help with?

We're glad the problem's been solved.

Please let us know if there's anything else we can help you with.

Is there anything else we can help with?

Where have you noticed the drop in performance?

Check the duct and internal hose

Turn off and unplug the machine.

Press the release catch on top of the cyclone and remove the bin.

Check the entry duct hatch for obstructions and that the seal is correctly seated.

Pull the red internal hose collar down, unclip it and then check for blockages.

Reassemble and test the machine.

Has clearing the duct and internal hose resolved the problem?

We need a little more information to help us solve your issue.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen. Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Check the bin and cyclone

Press the button at the top of the cyclone handle and remove the bin from the machine.

Troubleshooting image

Press the button again to open the bin base.

Troubleshooting image

Press the button near the rectangular inlet to separate the clear bin from the cyclone.

The clear bin can be wiped with a damp cloth.

Do not use any detergent or polish on any part of the machine.

Troubleshooting image

Check the bin and cyclone for blockages and remove as necessary.

Clear any hair or fibres from the cyclone shroud

Do not use any water on the cyclone.

Troubleshooting image

Reassemble and test the machine.

Has this resolved the problem?

Washing the filters

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has washing the filters resolved the problem?"

Has washing the filters resolved the problem?

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

How to wash the filters

Your machine has two washable filters which require washing at least once every 3 months.

Remove the pre-filter

Remove the bin and cyclone from the machine and unclip the cyclone top handle.

Troubleshooting image

Pull the filter out from the cyclone.

Troubleshooting image

Wash with cold water only. Do not use detergents.

Troubleshooting image

Remove the post-filter

Lay the machine on its side.

Turn the blue central locking dial on the outer cover of the ball anti-clockwise until the cover is released.

Lift off the cover.

Troubleshooting image

Turn the filter one-quarter anti-clockwise to release.

Troubleshooting image

The filter should be rinsed and tapped out until the water runs clean, then tapped out again to ensure all excess water is removed.

Troubleshooting image

Dry filters

Leave to dry completely for a minimum of 24 hours.

Troubleshooting image

Test the machine

Reassemble and test the machine.

Troubleshooting image

Has washing the filters resolved the problem?

Test the hose suction

To release the Wand, open the Wand cap and pull the Wand up and away from the handle until it clicks into place.

Troubleshooting image

Press the button on the hose collar to release the Wand from the hose.

Test the suction from the hose.

Troubleshooting image

Is the suction from the hose strong or weaker than usual?

Checking the wand and hose for blockages

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has checking the hose resolved the problem?"

Test the hose suction

To release the Wand, open the Wand cap and pull the Wand up and away from the handle until it clicks into place.

Press the button on the hose collar to release the Wand from the hose.

Troubleshooting image

Test the suction from the hose.

Troubleshooting image

Has this resolved the performance issue?

You might need a replacement part.

You can solve this by ordering a new Hose below or you can contact our Customer Support Team at 1-866-314-8881.

Hose

Part no. 920765-04

Replacement hose for your Dyson vacuum cleaner.

$29.99

Hose

Hose

Part no. 920765-04

Replacement hose for your Dyson vacuum cleaner.

$29.99

$29.99

You might need a replacement part.

You can solve this by ordering a new Hose below or you can contact our Customer Support Team at 1-866-314-8881.

Hose

Part no. 920765-04

Replacement hose for your Dyson vacuum cleaner.

$29.99

Hose

Hose

Part no. 920765-04

Replacement hose for your Dyson vacuum cleaner.

$29.99

$29.99

You might need a replacement part.

You can solve this by ordering a new Hose below or you can contact our Customer Support Team at 1-866-314-8881.

Hose

Part no. 920765-04

Replacement hose for your Dyson vacuum cleaner.

$29.99

Hose

Hose

Part no. 920765-04

Replacement hose for your Dyson vacuum cleaner.

$29.99

$29.99

Check the Wand

Look through both ends of the Wand and remove any blockages.

Check the Wand for damage.

Troubleshooting image

Has this resolved the problem?

You might need a replacement part.

You can solve this by ordering a new Wand below or you can contact our Customer Support Team at 1-866-314-8881.

Wand

Part no. 923523-01

Replacement wand for your Dyson vacuum cleaner.

$22.99

Wand

Wand

Part no. 923523-01

Replacement wand for your Dyson vacuum cleaner.

$22.99

$22.99

Check the Brush bar

Plug in and switch on the machine.

Troubleshooting image

Recline it into the vacuuming position.

Troubleshooting image

Check the Brush bar through the window at the front of the Cleaner head.

Troubleshooting image

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Reset the Brush bar

To reset the Brush bar press the Brush bar control button twice or switch the machine off and back on.

Please note: In normal use, the Brush bar automatically turns off when the machine is upright and automatically turns on when the machine is in the vacuuming position.

Troubleshooting image

Is the Brush bar now spinning?

Check Cleaner head

Turn off and unplug the machine.

Recline the machine into the vacuuming position.

Lay the machine on its front.

There is a latch on the connection between the ball and Cleaner head. Slide it towards the ball, supporting the machine as you do so.

Beware of sharp objects when clearing obstructions.

There is a red button on the back of the Cleaner head. Press it down and rotate the end cap to the open position and place it aside. Gently slide the cylindrical Brush bar out from the Cleaner head.

Remove any debris such as hair from the Brush bar.

Slide the Brush bar back into the Cleaner head. Place the end cap back on at a 45° angle and twist upwards.

Lay the machine on its back.

Attach the Cleaner head by sliding it on to the connections on the lower front part of the ball. Ensure the electrical plug on the Cleaner head fits into the twin–block connection on the body of the machine which is directly above the airway.

Push firmly: the Cleaner head will click into place.

Is the Brush bar now spinning?

Switch off and unplug the machine before proceeding.

Check inlet suction

Turn off and unplug the machine.

Recline the machine into the vacuuming position.

Troubleshooting image

Lay the machine on its front. Taking care, remove the swivel C-clip connector and pull the Cleaner head away from the vacuum's Main body.

Troubleshooting image

Turn the vacuum over so that the bin is facing upwards. Place your hand over the opening then turn on and test the suction.

Troubleshooting image

Is the suction at the Cleaner head inlet strong or is it weaker than usual?

Clear the Cleaner head

Turn off and unplug the machine.

Lay the machine on its front. Taking care, remove the swivel C-clip connector and pull the Cleaner head away from the vacuum's Main body.

Troubleshooting image

Undo the soleplate by turning both fasteners anti-clockwise.

Troubleshooting image

Open the soleplate and carefully cut away any hair or fibres using scissors.

Check the Brush bar for signs of damage.

Troubleshooting image

Check the opening on the Cleaner head for blockages and remove as necessary.

Troubleshooting image

Reassemble the machine

Refit the soleplate by locate the 3 lugs on the soleplate into the receiving recesses on the Cleaner head.

Troubleshooting image

Lock the soleplate by turning both fasteners outwards as far as they will go.

Troubleshooting image

Place the C-clip onto the Cleaner head.

Troubleshooting image

Push the Cleaner head onto the machine until it clicks.

Troubleshooting image

Turn on and test the machine.

Has this resolved the problem?

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Check the duct and internal hose

Turn off and unplug the machine.

Press the release catch on top of the cyclone and remove the bin.

Troubleshooting image

Has this resolved the problem?

Only remove the valve hose if you feel you are able to refit it. It is slightly more difficult to refit than the lower duct hose.

Check the changeover valve

Press the button at the top of the cyclone handle and remove the bin from the machine.

Remove the hose

Press the release catch and remove the hose from the appliance.

Troubleshooting image

Check the changeover valve for blockages and remove as necessary.

Troubleshooting image

Reassemble and test the machine.

Has this resolved the problem?

Check the duct and internal hose

Turn off and unplug the machine.

Press the release catch on top of the cyclone and remove the bin.

Troubleshooting image

Check the entry duct hatch for obstructions and that the seal is correctly seated.

Check where the hose connects for any blockages.

Troubleshooting image

First remove Phillips head screw (may not be present in all variants) and pull the internal hose collar down.

Unclip it and then check for blockages.

Troubleshooting image

Reassemble and test the machine.

Troubleshooting image

Has this resolved the problem?

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Reset the Brush bar

To reset the Brush bar press the Brush bar control button twice or switch the machine off and back on.

Please note: In normal use, the Brush bar automatically turns off when the machine is upright and automatically turns on when the machine is in the vacuuming position.

Troubleshooting image

Is the Brush bar now spinning?

Has this resolved the performance issue?

Check inlet suction

Turn off and unplug the machine.

Recline the machine into the vacuuming position.

Lay the machine on its front.

There is a latch on the connection between the ball and Cleaner head. Slide it towards the ball, supporting the machine as you do so.

Pull the Cleaner head away from the appliance. Use a constant, firm pressure.

Turn the vacuum over so that the bin is facing upwards. Place your hand over the opening then turn on and test the suction.

Is the suction at the Cleaner head inlet strong or is it weaker than usual?

Check the Cleaner head

Turn off and unplug the machine.

Lay the machine on its front. There is a latch on the connection between the ball and Cleaner head. Slide it towards the ball, supporting the appliance as you do so.

Pull the Cleaner head away from the appliance. Use a constant, firm pressure.

Beware of sharp objects when clearing obstructions.

There is a button on the back of the Cleaner head. Press it down and rotate the end cap to the open position and place it aside. Gently slide the cylindrical Brush bar out from the Cleaner head.

Remove any debris such as hair from the Brush bar.

Slide the Brush bar back into the Cleaner head. Place the end cap back on at a 45° angle and twist upwards.

Lay the machine on its back.

Attach the Cleaner head by sliding it on to the connections on the lower front part of the ball. Ensure the electrical plug on the Cleaner head fits into the twin–block connection on the body of the machine which is directly above the airway.

Push firmly: the Cleaner head will click into place.

Has this resolved the problem?

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Do not plug in or attempt to use the machine until it has been repaired by one of our engineers.

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

When did the machine last have power?

Thermal cut out

Most Dyson vacuums have a built in safety system that stops the machine if it begins to overheat. This usually happens because the filters need washing or your machine is blocked.

Carry out the performance checks, and if your machine cuts out unplug and leave for at least 2 hours to cool down.

If the customer prefers to check the machine when the power has returned, wait for a minimum of 2 hours and ask them to call back.

Check electrical supply

Is the power cord or plug damaged?

Are the other household appliances working?

Does the vacuum work when plugged into another socket?

Has checking the electrics resolved the problem?

Press the switch

Press the rear of the switch to make sure it stays in the on position.

Please note: The switch does not light up.

Please select the appropriate option

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Remove the post-filter

Recline the machine and lay it on its back or side.

Troubleshooting image

Turn the centre circle and remove the ball cover.

Troubleshooting image

Twist the filter and remove from the ball.

Troubleshooting image

Check the housing for any debris and remove as necessary.

Replace post-filter cover and move machine without post-filter in place.

Please follow the next step.

Refit the filter

Place the filter back in the ball.

Ensure that the filter and ball cover are fitted securely.

Test the machine.

Has refitting the post-filter resolved the problem?

Turn off the Brush bar

Plug the machine in and recline into the vacuuming position.

Troubleshooting image

Turn the machine on.

Turn the Brush bar off using the switch next to the power button.

Troubleshooting image

Has the noise stopped?

Check Cleaner head

Turn off and unplug the machine.

Recline the machine into the vacuuming position.

Lay the machine on its front.

There is a latch on the connection between the ball and Cleaner head. Slide it towards the ball, supporting the machine as you do so.

Beware of sharp objects when clearing obstructions.

There is a red button on the back of the Cleaner head. Press it down and rotate the end cap to the open position and place it aside. Gently slide the cylindrical Brush bar out from the Cleaner head.

Remove any debris such as hair from the Brush bar.

Slide the Brush bar back into the Cleaner head. Place the end cap back on at a 45° angle and twist upwards.

Lay the machine on its back.

Attach the Cleaner head by sliding it on to the connections on the lower front part of the ball. Ensure the electrical plug on the Cleaner head fits into the twin–block connection on the body of the machine which is directly above the airway.

Push firmly: the Cleaner head will click into place.

Has this resolved the problem?

Remove the bin and cyclone

Press the button at the top of the cyclone handle.

Remove the bin and cyclone from the machine.

Troubleshooting image

Turn the machine on, keeping it in the upright position.

Troubleshooting image

Is the whistle still present with the cyclone removed?

Test the machine without the post-filter

Recline the machine and lay it on its back or side.

Turn the centre circle and remove the ball cover.

Twist the filter and remove from the ball.

Turn the machine on.

Is the whistle still present with the post-filter removed?

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Reassemble the machine

Refit the filter ensuring it sits flush against the inside of the ball.

Turn the machine on.

Has refitting the post-filter resolved the problem?

You might need a replacement part.

You can solve this by ordering a new HEPA post filter below or you can contact our Customer Support Team at 1-866-314-8881.

HEPA post filter

Part no. 920769-03

<p>Replacement HEPA post filter for your Dyson vacuum cleaner.</p>

$29.99

HEPA post filter

Part no. 920769-03

<p>Replacement HEPA post filter for your Dyson vacuum cleaner.</p>

$29.99

Currently out of stock.

$29.99

Keep me updated

Check for blockages

This would suggest there is a blockage somewhere in the machine.

Please follow the next step.

Check inlet suction

Turn off and unplug the machine.

Recline the machine into the vacuuming position.

Lay the machine on its front.

There is a latch on the connection between the ball and Cleaner head. Slide it towards the ball, supporting the machine as you do so.

Pull the Cleaner head away from the appliance. Use a constant, firm pressure.

Turn the vacuum over so that the bin is facing upwards. Place your hand over the opening then turn on and test the suction.

Where have you noticed the drop in performance?

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Check the bin and cyclone

A damp or musty smell is caused when dust in the cyclone has come into contact with water.

It may not be a direct contact with water, for example when vacuuming pet hair that is slightly damp, this moisture will combine with the dust in the cyclone causing the smell.

Additionally the smell may occur if the filter goes back into the machine wet.

Press the button at the top of the cyclone handle and remove the bin from the machine.

Troubleshooting image

Press the button again to open the bin base.

Troubleshooting image

Press the button near the rectangular inlet to separate the clear bin from the cyclone.

The clear bin can be wiped with a damp cloth.

WARNING: Do not use any detergent or polish on any part of the machine.

Troubleshooting image

Check the bin and cyclone for blockages and remove as necessary.

Clear any hair or fibres from the cyclone shroud

Do not use any water on the cyclone.

Once the parts are completely dry, reassemble and test the machine.

Has this resolved the problem?

Check the cyclone bin release button

Press the bin release button on the cyclone. This should then make contact with the red rod on the outside of the bin.

This in turn should make contact with the bin release catch, this is the clear hook at the end of the red rod.

Troubleshooting image

Does the bin release button make contact with the top of the red rod?

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Manually open the bin

During first use the bin base can be tightly sealed in place.

Attempt to open the bin base manually by pulling the bin base catch. This is the clear hook at the end of the red rod.

Troubleshooting image

If the bin is now open, does the red rod on the outside of the bin slide up and down freely?

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

You might need a replacement part.

You can solve this by ordering a new Bin below or you can contact our Customer Support Team at 1-866-314-8881.

Bin

Part no. 920624-03

Replacement bin for your Dyson vacuum cleaner.

$29.99

Bin

Bin

Part no. 920624-03

Replacement bin for your Dyson vacuum cleaner.

$29.99

$29.99

We're glad the problem's been solved.

Please let us know if there's anything else we can help you with.

Has the ball shell come off the filter side or non-filter side?

Has the nut come out of the centre of the ball shell?

How to refit the ball shell

The ball shell can be screwed back onto the bolt on the main duct of the machine.

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Reset the Brush bar

To reset the Brush bar press the Brush bar control button twice or switch the machine off and back on.

Please note: In normal use, the Brush bar automatically turns off when the machine is upright and automatically turns on when the machine is in the vacuuming position.

Troubleshooting image

Has this resolved the problem?

Bin release check

Check the bin release catch for signs of damage.

Is the release catch broken?

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Release the catch by hand

Pull the clear plastic catch on the base away from the bin.

Open the bin base and tip away the contents.

Troubleshooting image

Press the bin release button on the cyclone handle.

You might need a replacement part.

You can solve this by ordering a new Bin below or you can contact our Customer Support Team at 1-866-314-8881.

Bin

Part no. 920624-03

Replacement bin for your Dyson vacuum cleaner.

$29.99

Bin

Bin

Part no. 920624-03

Replacement bin for your Dyson vacuum cleaner.

$29.99

$29.99

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Check the Brush bar

Plug in and switch on the machine.

Recline it into the vacuuming position.

Troubleshooting image

Check the brushbar through the window at the front of the cleanerhead.

Troubleshooting image

Does the Brush bar spin when the machine is reclined?

Reset the Brush bar

To reset the Brush bar press the Brush bar control button twice or switch the machine off and back on.

Please note: In normal use, the Brush bar automatically turns off when the machine is upright and automatically turns on when the machine is in the vacuuming position.

Troubleshooting image

Has resetting the Brush bar resolved the problem?

We need a little more information to help us solve your issue.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen. Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Check the soleplate

Check the soleplate to ensure there is no debris or damage to the wheels, and check the wheels are not missing.

Is there any damage to the soleplate?

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

You might need a replacement part.

You can solve this by ordering a new Combination tool below or you can contact our Customer Support Team at 1-866-314-8881.

Combination tool

Part no. 968154-01

Two tools in one, for versatile cleaning around the home.

$22.99

Combination tool

Combination tool

Part no. 968154-01

Two tools in one, for versatile cleaning around the home.

$22.99

$22.99

You might need a replacement part.

You can solve this by ordering a new Hose below or you can contact our Customer Support Team at 1-866-314-8881.

Hose

Part no. 920765-04

Replacement hose for your Dyson vacuum cleaner.

$29.99

Hose

Hose

Part no. 920765-04

Replacement hose for your Dyson vacuum cleaner.

$29.99

$29.99

You might need a replacement part.

You can solve this by ordering a new HEPA post filter below or you can contact our Customer Support Team at 1-866-314-8881.

HEPA post filter

Part no. 920769-03

<p>Replacement HEPA post filter for your Dyson vacuum cleaner.</p>

$29.99

HEPA post filter

Part no. 920769-03

<p>Replacement HEPA post filter for your Dyson vacuum cleaner.</p>

$29.99

Currently out of stock.

$29.99

Keep me updated

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

You might need a replacement part.

You can solve this by ordering a new Wand below or you can contact our Customer Support Team at 1-866-314-8881.

Wand

Part no. 923523-01

Replacement wand for your Dyson vacuum cleaner.

$22.99

Wand

Wand

Part no. 923523-01

Replacement wand for your Dyson vacuum cleaner.

$22.99

$22.99

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

You might need a replacement part.

You can solve this by ordering a new Stair tool below or you can contact our Customer Support Team at 1-866-314-8881.

Stair tool

Part no. 920756-01

Lifts carpet pile without sticking and captures hairs with velour strips.

$8.99

Stair tool

Stair tool

Part no. 920756-01

Lifts carpet pile without sticking and captures hairs with velour strips.

$8.99

$8.99

Apologies. We can’t help you online.

Please contact our Customer Support Team by calling 1-866-314-8881 or by clicking the Live Chat button in the bottom right corner of your screen.

Dyson Supersonicᵀᴹ hair dryer Professional edition owners should call 1-866-861-2565.

Blockage

This is likely to be caused by a blockage.

Ensure that you return the machine to the upright position by pushing it firmly into place until it clicks. The stabiliser wheels will automatically lower.

Check the changeover valve

Press the button at the top of the cyclone handle and remove the bin from the machine.

Troubleshooting image

Remove the hose

Press the release catch and remove the hose from the appliance.

Troubleshooting image

Check the changeover valve for blockages and remove as necessary.

Troubleshooting image

Reassemble and test the machine.

Has checking the duct and internal hose resolved the problem?

Clear the Cleaner head

Turn off and unplug the machine.

Lay the appliance on its front. There is a latch on the connection between the ball and cleaner head. Slide it towards the ball, supporting the appliance as you do so.

Pull the Cleaner head away from the appliance. Use a constant, firm pressure.

Beware of sharp objects when clearing obstructions.

There is a button on the back of the Cleaner head. Press it down and rotate the end cap to the open position and place it aside. Gently slide the cylindrical Brush bar out from the Cleaner head.

Remove any debris such as hair from the brush bar.

Slide the brush bar back into the cleaner head. Place the end cap back on at a 45° angle and twist upwards.

Lay the machine on its back.

Attach the Cleaner head by sliding it on to the connections on the lower front part of the ball. Ensure the electrical plug on the Cleaner head fits into the twin–block connection on the body of the machine which is directly above the airway.

Push firmly: the Cleaner head will click into place.

Has this resolved the problem?

Check the duct and internal hose

Turn off and unplug the machine.

Press the release catch on top of the cyclone and remove the bin.

Check the entry duct hatch for obstructions and that the seal is correctly seated.

Pull the internal hose collar down, unclip it and then check for blockages.

Has this resolved the problem?

Removing the wand from hose

To release the Wand, open the Wand cap and pull the Wand up and away from the handle until it clicks into place.

Press the button on the hose collar to release the Wand from the hose.

If the wand won't return to the hose

Press the hose release catch and pull it away from the back of the machine.

Untwist and refit the hose.

Has this resolved the problem?

How to start vacuuming

Plug the machine in.

Pull handle back and recline machine into vacuuming position ensuring the stabilising wheels are facing up towards the back of the machine.

Press the ON/OFF switch.

Small movements of the wrist will create a zig zag motion in the Cleaner head allowing easier cleaning around furniture.

Extend the wand until it clicks.

Press the wand release button and lift the wand out of the hose.

Lift the wand handle cap and push on to the hose until it clicks into place.

Push the combination tool on to the end of the wand handle.

Alternatively, click the combination tool directly to the hose.

Is there anything else we can help with?

How to use the Brush bar

Note: The Brush bar will automatically switch on when the machine is reclined into the vacuuming position.

Press the brush control button next to the On/Off switch to stop the brushes for use on delicate rugs, loop pile carpets and hard floors.

Press the button again to restart the Brush bar for vacuuming carpets.

Is there anything else we can help with?

Carrying your Dyson machine

To lift the machine use the carrying handle on the cyclone top only, not the handle on the clear bin.

Is there anything else we can help with?

Is there anything else we can help with?

Please open the PDF for the user guide.

Is there anything else we can help you with?

Empty the bin

To ensure your machine continues to clean effectively, the clear bin must be emptied as soon as the dust reaches the MAX mark.

Is there anything else we can help with?

Washing the filters

Please follow the steps in the video.

Is there anything else we can help with?

How to wash the filters

Your machine has two washable filters which require washing at least once every 3 months.

Remove the pre-filter

Pull the filter out from the cyclone.

Wash with cold water only. Do not use detergents.

Remove the post-filter

Lay the machine on its side.

Turn the blue central locking dial on the outer cover of the ball anti-clockwise until the cover is released.

Lift off the cover.

Turn the filter one-quarter anti-clockwise to release.

The filter should be rinsed and tapped out until the water runs clean, then tapped out again to ensure all excess water is removed.

Dry filters

Leave to dry completely for a minimum of 24 hours.

Test the machine

Reassemble and test the machine.

Is there anything else we can help with?
